Applications :

• The cables are designed as local control or power supply cables for trackside and between the rails equipments inside the equipment shelter.

Standards :

• SNCF CT 466

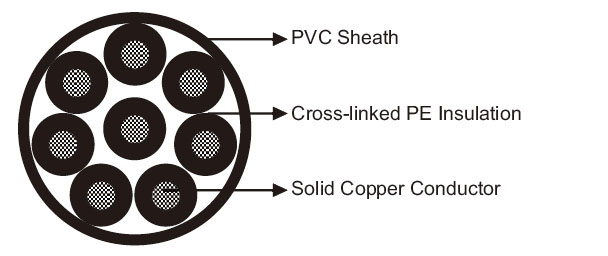

Construction :

• Conductors : Class 1 tinned solid copper.
• Insulation :：Cross-linked black polyethylene (XLPE) insulation.
• Sheath : PVC sheath, coloured black.

Electrical Characteristics at 20 °C :

• No of Strands/ Strand Diameter	No/mm	1.78	2.76
  Nominal Cross Section Area	mm2	2.5	6
  Maximum Conductor Resistance (DC)	Ω/km	7.56	3.11
  Operating Voltage	V	750

Mechanical and Thermal Properties :

• Minimum Bending Radius : 5xOD (static); 10xOD (dynamic).
• Operating Temperature : -20°C to +90°C.

Dimensions and Weight :



Cable Code	Number of Cores	Nominal Sheath Thickness mm	Nominal Overall Diameter mm	Nominal Weight kg/km
1.78mm Conductor, 4mm Insulated Wire
RS/SCG-075-2XY-2G2.5	2	3.0	14	227
RS/SCG-075-2XY-4G2.5	4	3.2	17	336
RS/SCG-075-2XY-6G2.5	6	3.7	19.5	475
RS/SCG-075-2XY-8G2.5	8	3.9	21	542
2.76mm Conductor, 5.4mm Insulated Wire
RS/SCG-075-2XY-2G6	2	3.6	18	384
RS/SCG-075-2XY-4G6	4	3.7	20.5	550
RS/SCG-075-2XY-6G6	6	3.9	23.5	780
RS/SCG-075-2XY-8G6	8	3.1	26	940





Rated voltage	Laid In Cable Tray		Flame Retardant NF C32-070-2.1(C2) IEC 60332-1/EN 50265-2-1
